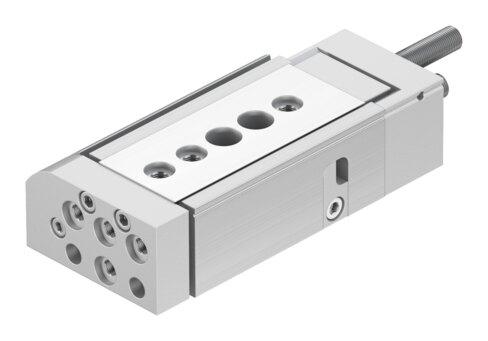

Reference imageConfirm configuration by manufacturer part number.
Festo
543904
Mini slide DGSL-8- -
Festo Mini slide DGSL-8- -, part number 543904, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 543904
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543904.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Stroke
- 10 mm...80 mm
- Piston diameter
- 10 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Short elastic cushioning rings/pads at both ends | No cushioning | Elastic cushioning rings/pads at both ends | Elastic cushioning rings/pads at both ends with xed stop | Progressive pneumatic shock absorbers at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Theoretical force at 6 bar, retracting
- 40 N
- Theoretical force at 6 bar, advancing
- 47 N
- Alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- HNBR
- Housing material
- Wrought aluminum alloy
