Festo
543908

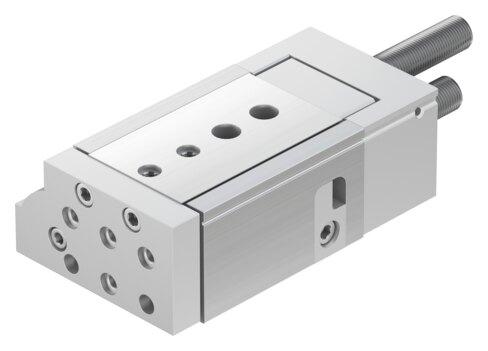

Mini slide DGSL-20- -
The Festo part number 543908 is a double-acting industrial component featuring a 25 mm piston diameter and a stroke length ranging from 10 mm to 200 mm, operating at pressures between 1 bar and 8 bar (0.1 MPa to 0.8 MPa). This drive unit incorporates a ball bearing cage guide, a yoke structural design, and multiple cushioning options including elastic rings or pneumatic shock absorbers. It delivers a theoretical force of 247 N retracting and 295 N advancing at 6 bar, with position sensing via proximity switch and compatibility with compressed air as per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543908
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543908.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...200 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Short elastic cushioning rings/pads at both ends | No cushioning | Elastic cushioning rings/pads at both ends | Elastic cushioning rings/pads at both ends with xed stop | Self- adjusting pneumatic shock absorber, progressive at both ends, | with reducing sleeve | Progressive pneumatic shock absorbers at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Theoretical force at 6 bar, retracting
- 247 N
- Theoretical force at 6 bar, advancing
- 295 N
- Alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
