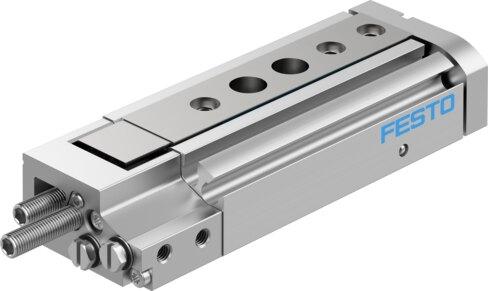

Name: Festo 543914 Mini slide DGSL-4-20-P1A
Brand: Festo

Mini slide DGSL-4-20-P1A

The Festo 543914 is a double-acting industrial component featuring a 6 mm piston diameter, a 20 mm stroke, and a yoke drive unit operating mode with a piston rod and slide. It operates on compressed air per ISO 8573-1:2010 [7:4:4] within a 0.25 MPa to 0.8 MPa pressure range, achieving a maximum speed of 0.5 m/s and a repetition accuracy of ±0.01 mm. Equipped with elastic cushioning rings at both ends with a fixed stop and a ball bearing cage guide, this unit supports position sensing via proximity switch and functions at ambient temperatures from 0 °C to 60 °C. Submit part number 543914, quantity, and application requirements to request a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 543914
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 543914.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 20 mm
Adjustable end-position range/front length: 24.5 mm
Adjustable end-position range/rear length: 13.5 mm
Piston diameter: 6 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends with xed stop
Mounting position: Any
Guide: Ball bearing cage guide
Structural design: Yoke | Piston | Piston rod | Slide
Position sensing: Via proximity switch
Operating pressure: 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
Max. speed: 0.5 m/s
Repetition accuracy: ±0.01 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.005 Nm
Cushioning length: 1.7 mm
Max. force Fy: 368 N
Max. force Fz: 368 N
Max. torque Mx: 2 Nm
Max. torque My: 2 Nm
Max. torque Mz: 2 Nm
Theoretical force at 6 bar, retracting: 13 N
