Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
543919

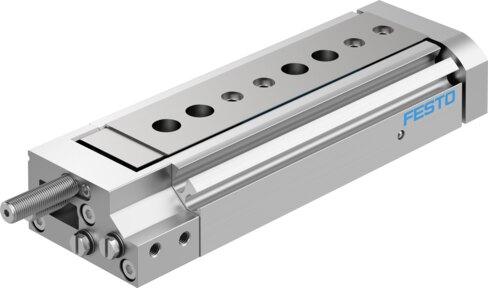

Mini slide DGSL-6-40-PA
Engineered with an 8 mm piston diameter and a 40 mm stroke, this double-acting Festo industrial component part number 543919 operates via a yoke drive unit with a ball bearing cage guide. The assembly features elastic cushioning rings at both ends, a repetition accuracy of 0.3 mm, a maximum speed of 0.5 m/s, and an operating pressure range of 1.5 bar to 8 bar utilizing compressed air as per ISO 8573-1:2010 [7:4:4]. It includes position sensing via a proximity switch, an adjustable end-position range of 30.5 mm at the front and 15 mm at the rear, and is suitable for ambient temperatures from 0 °C to 60 °C with ISO Class 7 cleanroom conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543919
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543919.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 40 mm
- Adjustable end-position range/front length
- 30.5 mm
- Adjustable end-position range/rear length
- 15 mm
- Piston diameter
- 8 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. speed
- 0.5 m/s
- Repetition accuracy
- 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.05 Nm
- Cushioning length
- 1.5 mm
- Max. force Fy
- 677 N
- Max. force Fz
- 677 N
- Max. torque Mx
- 8 Nm
- Max. torque My
- 5.5 Nm
- Max. torque Mz
- 5.5 Nm
- Theoretical force at 6 bar, retracting
- 23 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543919. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
