Festo
543935

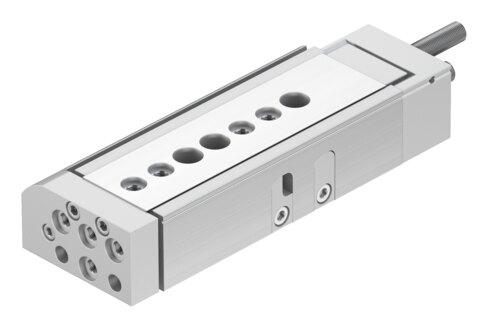

Mini slide DGSL-8-40-P1A
The Festo 543935 is a double-acting industrial component featuring a 10 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating mode with an integrated ball bearing cage guide. This slide features structural elements including a piston, piston rod, and slide, utilizing elastic cushioning rings or pads at both ends with a fixed stop, along with an adjustable end-position range of 35.5 mm at the front and 18.5 mm at the rear. Position sensing is accomplished via proximity switch, operating at pressures from 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:4:4] at a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm. Designed for any mounting position within an ambient temperature range of 0 °C to 60 °C, the unit exhibits a corrosion resistance class of CRC 0, LABS conformity under VDMA24364-B1/B2-L, and cleanroom suitability of ISO Class 7 according to ISO 14644-1. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543935
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543935.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 40 mm
- Adjustable end-position range/front length
- 35.5 mm
- Adjustable end-position range/rear length
- 18.5 mm
- Piston diameter
- 10 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends with xed stop
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. speed
- 0.8 m/s
- Repetition accuracy
- ±0.01 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.03 Nm
- Cushioning length
- 3.1 mm
- Max. force Fy
- 934 N
- Max. force Fz
- 934 N
- Max. torque Mx
- 10 Nm
- Max. torque My
- 5.5 Nm
- Max. torque Mz
- 5.5 Nm
- Theoretical force at 6 bar, retracting
- 40 N
