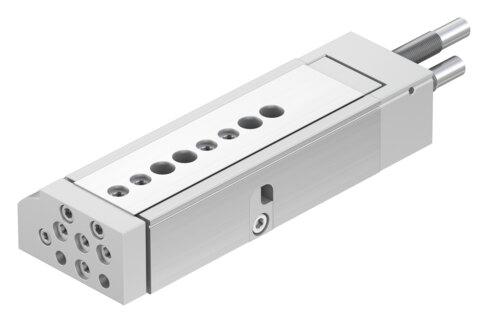

Reference imageConfirm configuration by manufacturer part number.
Festo
543958
Mini slide DGSL-10-50-Y3A
Engineered with a 12 mm piston diameter and a 50 mm stroke, this double-acting Festo industrial component features a yoke drive unit operating mode with an integrated piston, piston rod, and slide. The assembly incorporates progressive pneumatic shock absorbers at both ends, a ball bearing cage guide, and position sensing via proximity switch within an operating pressure range of 0.15 MPa to 0.8 MPa. Designed for cleanroom environments meeting ISO 14644-1 Class 7, the unit operates at a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm across any mounting position. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 543958
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 543958.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Adjustable end-position range/front length
- 24 mm
- Adjustable end-position range/rear length
- 15 mm
- Piston diameter
- 12 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Progressive pneumatic shock absorbers at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. speed
- 0.8 m/s
- Repetition accuracy
- ±0.01 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 1 Nm
- Cushioning length
- 8 mm
- Max. force Fy
- 1175 N
- Max. force Fz
- 1175 N
- Max. torque Mx
- 18 Nm
- Max. torque My
- 9 Nm
- Max. torque Mz
- 9 Nm
- Theoretical force at 6 bar, retracting
- 51 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 543958. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
