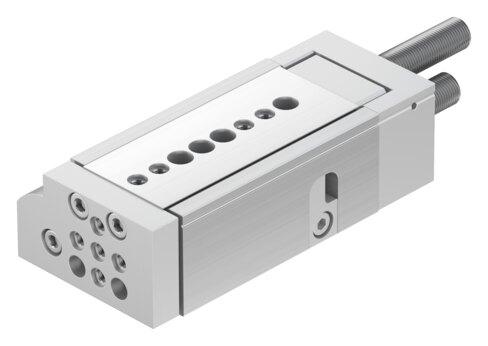

Name: Festo 543992 Mini slide DGSL-16-20-P1A
Brand: Festo

Mini slide DGSL-16-20-P1A

The Festo 543992 is a double-acting industrial component featuring a 20 mm piston diameter, a 20 mm stroke, and a yoke drive unit operating mode with a ball bearing cage guide. It operates at pressures from 0.1 MPa to 0.8 MPa (1 bar to 8 bar) with compressed air conforming to ISO 8573-1:2010 [7:4:4], achieving a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm. The unit incorporates elastic cushioning rings or pads with a fixed stop at both ends, position sensing via proximity switch, an adjustable end-position front length of 37.5 mm, and an adjustable end-position rear length of 39.5 mm for installation in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 543992
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 543992.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 20 mm
Adjustable end-position range/front length: 37.5 mm
Adjustable end-position range/rear length: 39.5 mm
Piston diameter: 20 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends with xed stop
Mounting position: Any
Guide: Ball bearing cage guide
Structural design: Yoke | Piston | Piston rod | Slide
Position sensing: Via proximity switch
Operating pressure: 0.1 MPa...0.8 MPa | 1 bar...8 bar
Max. speed: 0.8 m/s
Repetition accuracy: ±0.01 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.12 Nm
Cushioning length: 4.2 mm
Max. force Fy: 2021 N
Max. force Fz: 2021 N
Max. torque Mx: 35 Nm
Max. torque My: 22 Nm
Max. torque Mz: 22 Nm
Theoretical force at 6 bar, retracting: 158 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 543992. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
