Festo
544024

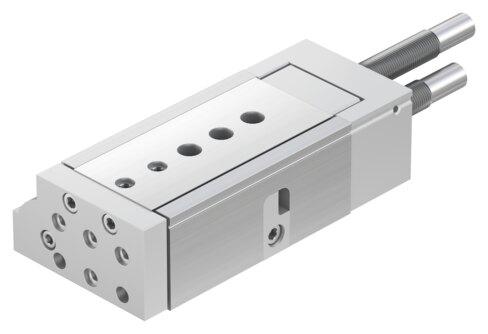

Mini slide DGSL-20-40-Y3A
The Festo part number 544024 is a double-acting industrial drive unit featuring a 25 mm piston diameter, a 40 mm stroke, and a yoke structural design incorporating a piston, piston rod, and slide. Operating at pressures from 1 bar to 8 bar with compressed air conforming to ISO 8573-1:2010 [7:4:4], this component achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and integrates progressive pneumatic shock absorbers at both ends alongside a ball bearing cage guide. It includes position sensing via proximity switch, features adjustable end-position ranges of 44 mm at the front and 42 mm at the rear, functions in any mounting position within an ambient temperature range of 0 °C to 60 °C, and meets ISO 14644-1 Cleanroom Class 7 suitability with VDMA24364-B1/B2-L LABS conformity and a corrosion resistance class of CRC 0. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 544024
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 544024.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 40 mm
- Adjustable end-position range/front length
- 44 mm
- Adjustable end-position range/rear length
- 42 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Progressive pneumatic shock absorbers at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar
- Max. speed
- 0.8 m/s
- Repetition accuracy
- ±0.01 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 7 Nm
- Cushioning length
- 17 mm
- Max. force Fy
- 3612 N
- Max. force Fz
- 3612 N
- Max. torque Mx
- 60 Nm
- Max. torque My
- 40 Nm
- Max. torque Mz
- 40 Nm
- Theoretical force at 6 bar, retracting
- 247 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 544024. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
