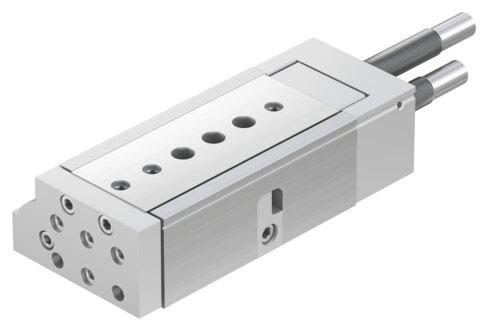

Reference imageConfirm configuration by manufacturer part number.
Festo
544025
Mini slide DGSL-20-50-Y3A
The Festo 544025 is a double-acting industrial drive unit featuring a yoke structural design, a 25 mm piston diameter, and a 50 mm stroke with an adjustable end-position range of 44 mm at the front and 42 mm at the rear. It operates at pressures from 0.1 MPa to 0.8 MPa using compressed air according to ISO 8573-1:2010 [7:4:4], incorporates progressive pneumatic shock absorbers at both ends, and achieves a repetition accuracy of ±0.01 mm at a maximum speed of 0.8 m/s. Position sensing is accomplished via proximity switch, and the assembly utilizes a ball bearing cage guide with an ambient operating temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 544025
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 544025.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Adjustable end-position range/front length
- 44 mm
- Adjustable end-position range/rear length
- 42 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Progressive pneumatic shock absorbers at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar
- Max. speed
- 0.8 m/s
- Repetition accuracy
- ±0.01 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 7 Nm
- Cushioning length
- 17 mm
- Max. force Fy
- 3816 N
- Max. force Fz
- 3816 N
- Max. torque Mx
- 70 Nm
- Max. torque My
- 50 Nm
- Max. torque Mz
- 50 Nm
- Theoretical force at 6 bar, retracting
- 247 N
