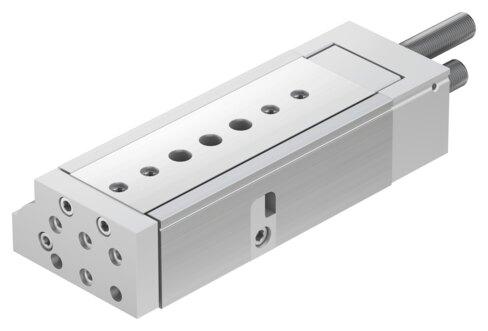

Reference imageConfirm configuration by manufacturer part number.
Festo
544035
Mini slide DGSL-25-80-PA
This Festo double-acting industrial component features a 32 mm piston diameter, an 80 mm stroke, and a yoke drive unit operating mode with a ball bearing cage guide. It operates at pressures from 0.1 MPa to 0.8 MPa (1 bar to 8 bar) with compressed air as per ISO 8573-1:2010 [7:4:4], achieving a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and position sensing via proximity switch. The unit includes elastic cushioning rings or pads at both ends, front and rear adjustable end-position ranges of 110 mm and 49 mm respectively, and is suitable for any mounting position within an ambient temperature range of 0 °C to 60 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 544035
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 544035.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 80 mm
- Adjustable end-position range/front length
- 110 mm
- Adjustable end-position range/rear length
- 49 mm
- Piston diameter
- 32 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar
- Max. speed
- 0.8 m/s
- Repetition accuracy
- 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.55 Nm
- Cushioning length
- 1.3 mm
- Max. force Fy
- 4700 N
- Max. force Fz
- 4700 N
- Max. torque Mx
- 130 Nm
- Max. torque My
- 80 Nm
- Max. torque Mz
- 80 Nm
- Theoretical force at 6 bar, retracting
- 415 N
