Name: Festo 544053 Mini slide DGSL-25-150-Y3A
Brand: Festo

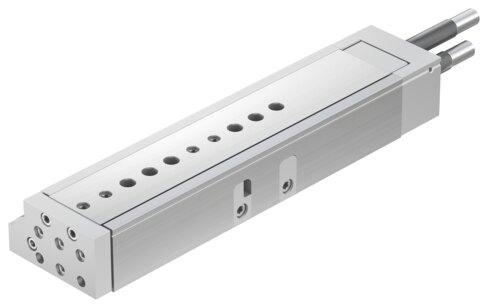

Mini slide DGSL-25-150-Y3A

The Festo 544053 is a double-acting industrial drive unit featuring a 32 mm piston diameter, a 150 mm stroke, and a yoke structural design incorporating a piston, piston rod, and slide. Equipped with a ball bearing cage guide, progressive pneumatic shock absorbers at both ends, and position sensing via proximity switch, this component operates at pressures from 1 bar to 8 bar with a repetition accuracy of ±0.01 mm and a maximum speed of 0.8 m/s. It functions within an ambient temperature range of 0 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4] and meets ISO 14644-1 Class 7 cleanroom suitability. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 544053
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 544053.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 150 mm
Adjustable end-position range/front length: 111 mm
Adjustable end-position range/rear length: 51.5 mm
Piston diameter: 32 mm
Drive unit operating mode: Yoke
Cushioning: Progressive pneumatic shock absorbers at both ends
Mounting position: Any
Guide: Ball bearing cage guide
Structural design: Yoke | Piston | Piston rod | Slide
Position sensing: Via proximity switch
Operating pressure: 0.1 MPa...0.8 MPa | 1 bar...8 bar
Max. speed: 0.8 m/s
Repetition accuracy: ±0.01 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 10 Nm
Cushioning length: 20 mm
Max. force Fy: 4800 N
Max. force Fz: 4800 N
Max. torque Mx: 130 Nm
Max. torque My: 80 Nm
Max. torque Mz: 80 Nm
Theoretical force at 6 bar, retracting: 415 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 544053. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
