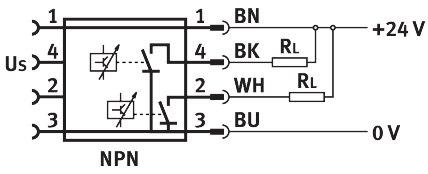

Reference imageConfirm configuration by manufacturer part number.
Festo
544220
Signal conditioner SVE4-US-R-HM8-2N-M8
The Festo part number 544220 is an industrial component featuring a 0 to 10 V +/-0.3 V signal range, 2xNPN switching outputs with freely programmable and switchable functions, and a DC operating voltage range of 10 V to 30 V with pulsed short-circuit protection and overload protection. It is equipped with an M8x1 A-coded 4-pin socket and an M8x1 A-coded 4-pin plug, operating within an ambient temperature range of -20 °C to 70 °C and a UL-ambient temperature range of -20 °C to 60 °C. The unit carries RCM and c UL us-Listed (OL) certifications, bears CE and UKCA markings per EMC and RoHS directives, and is constructed with RoHS compliant materials. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 544220
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 544220.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- UL-ambient temperature
- -20 °C...60 °C
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Signal range
- 0 - 10 V +/-0.3 V
- Ambient temperature
- -20 °C...70 °C
- Switching output
- 2xNPN
- Switching function
- Freely programmable
- Switching element function
- Switchable
- Short-circuit protection
- Pulsed
- Overload protection
- Available
- DC operating voltage range
- 10 V...30 V
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock | not rotatable | Compatible with rotatable screw-type lock
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, type of mounting
- Snap-locking | Screw-type lock | not rotatable | Compatible with snap-locking | Compatible with rotatable screw-type lock
- Product weight
- 19 g
- Housing material
- ABS
- Setting options
- Teach-in
- Degree of protection
- IP65
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 544220. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
