Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

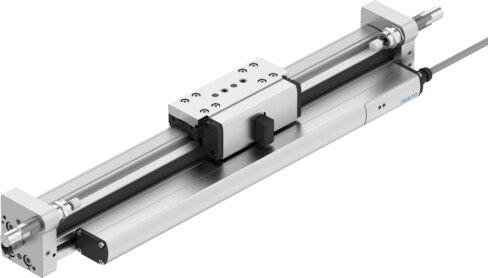

Reference imageConfirm configuration by manufacturer part number.
Festo
544425
Linear actuator DGCI-18- -
The Festo part number 544425 is a double-acting industrial component featuring an 18 mm piston diameter, an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar / 29 psi to 116 psi), and a stroke length adjustable from 100 mm to 2000 mm with a 20 mm stroke reduction in the end positions. Equipped with a recirculating ball bearing guide, pneumatic shock absorbers with hard and soft characteristic curves, and an attached linear potentiometer for position sensing, this model operates in any mounting position and includes variants with a protected guide or additional left and right standard slides. Certified for ATEX and UKEX Zone 2 and Zone 22 hazardous locations with II 3G gas and II 3D dust categories, it carries RCM compliance, CE marking, and UKCA marking per applicable EMC, explosion protection, and RoHS directives. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 544425
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 544425.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 100 mm...2000 mm
- Stroke, servopneumatic positioning
- 100 mm...2000 mm
- Soft Stop stroke
- 100 mm...2000 mm
- Stroke reduction in the end positions
- 20 mm
- Shortest positioning stroke
- 3% of max. stroke | But maximum 20 mm
- Piston diameter
- 18 mm
- Cushioning
- Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Position sensing
- With linear potentiometer attached
- Variants
- Protected recirculating ball bearing guide | Additional slide, standard, on left | Additional slide, standard on right
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Mode of operation
- Double-acting
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gc (GB)
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
- ATEX category gas
- II 3G
- ATEX category for dust
- II 3D
- Type of ignition protection for gas
- Ex ec IIC T4 Gc X
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 544425. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
