Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

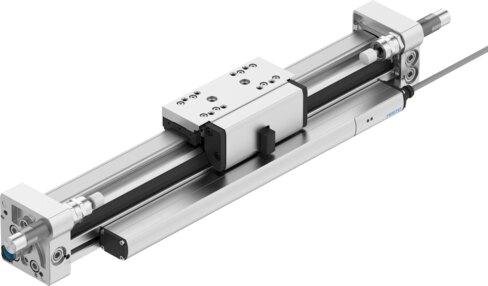

Reference imageConfirm configuration by manufacturer part number.
Festo
544426
Linear actuator DGCI-25- -
The Festo 544426 is a double-acting industrial component featuring a piston diameter of 25 mm and a stroke range from 100 mm to 2000 mm, applicable for servopneumatic positioning and Soft Stop operation with a stroke reduction of 25 mm in the end positions. Equipped with a recirculating ball bearing guide and an attached linear potentiometer for position sensing, it operates within an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) using pneumatic shock absorbers with hard or soft characteristic curves. This unit carries RCM, CE, and UKCA markings, holds ATEX and UKEX explosion protection certifications for Zone 2 gas (II 3G) and Zone 22 dust (II 3D), and supports mounting in any position with optional variants including an axis clamping unit and additional slides. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 544426
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 544426.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 100 mm...2000 mm
- Stroke, servopneumatic positioning
- 100 mm...2000 mm
- Soft Stop stroke
- 100 mm...2000 mm
- Stroke reduction in the end positions
- 25 mm
- Shortest positioning stroke
- 3% of max. stroke | But maximum 20 mm
- Piston diameter
- 25 mm
- Cushioning
- Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Position sensing
- With linear potentiometer attached
- Variants
- Axis clamping unit | Protected recirculating ball bearing guide | Additional slide, standard, on left | Additional slide, standard on right
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Mode of operation
- Double-acting
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gc (GB)
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
- ATEX category gas
- II 3G
- ATEX category for dust
- II 3D
- Type of ignition protection for gas
- Ex ec IIC T4 Gc X
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 544426. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
