Festo
544427

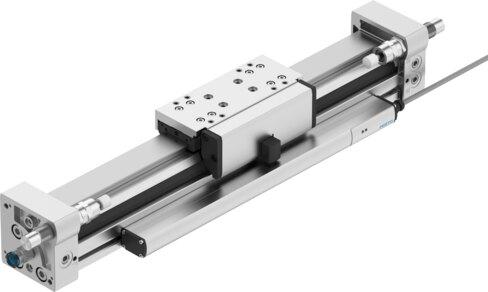

Linear actuator DGCI-32- -
The Festo 544427 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke ranging from 100 mm to 2000 mm, inclusive of servopneumatic positioning and Soft Stop stroke capabilities. This unit incorporates a recirculating ball bearing guide, linear potentiometer position sensing, and pneumatic shock absorbers with hard and soft characteristic curves. Operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar / 29 psi to 116 psi), the assembly supports any mounting position and carries RCM compliance, CE, and UKCA markings alongside ATEX and UKEX Zone 2 and Zone 22 explosion protection certifications for gas category II 3G and dust category II 3D. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 544427
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 544427.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 100 mm...2000 mm
- Stroke, servopneumatic positioning
- 100 mm...2000 mm
- Soft Stop stroke
- 100 mm...2000 mm
- Stroke reduction in the end positions
- 25 mm
- Shortest positioning stroke
- 3% of max. stroke | But maximum 20 mm
- Piston diameter
- 32 mm
- Cushioning
- Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Position sensing
- With linear potentiometer attached
- Variants
- Axis clamping unit | Protected recirculating ball bearing guide | Additional slide, standard, on left | Additional slide, standard on right
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Mode of operation
- Double-acting
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gc (GB)
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
- ATEX category gas
- II 3G
- ATEX category for dust
- II 3D
- Type of ignition protection for gas
- Ex ec IIC T4 Gc X
