Festo
544428

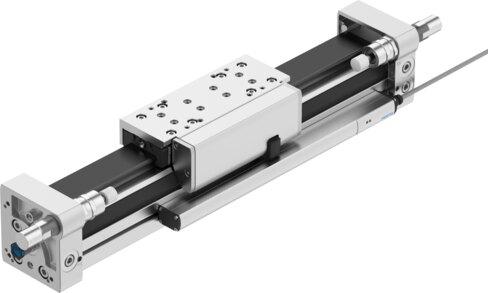

Linear actuator DGCI-40- -
The Festo 544428 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke ranging from 100 mm to 2000 mm, and dual pneumatic shock absorber cushioning with hard and soft characteristic curves. This unit operates within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar / 21.75 psi to 116 psi) and includes a recirculating ball bearing guide, linear potentiometer position sensing, and compliance with ATEX and UKEX Zone 2 and Zone 22 explosion protection standards alongside RCM, CE, and UKCA markings. Submit the exact part number, quantity, and application requirements for a formal price quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 544428
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 544428.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 100 mm...2000 mm
- Stroke, servopneumatic positioning
- 100 mm...2000 mm
- Soft Stop stroke
- 100 mm...2000 mm
- Stroke reduction in the end positions
- 35 mm
- Shortest positioning stroke
- 3% of max. stroke | But maximum 20 mm
- Piston diameter
- 40 mm
- Cushioning
- Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Position sensing
- With linear potentiometer attached
- Variants
- Axis clamping unit | Protected recirculating ball bearing guide | Additional slide, standard, on left | Additional slide, standard on right
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Mode of operation
- Double-acting
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gc (GB)
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
- ATEX category gas
- II 3G
- ATEX category for dust
- II 3D
- Type of ignition protection for gas
- Ex ec IIC T4 Gc X
