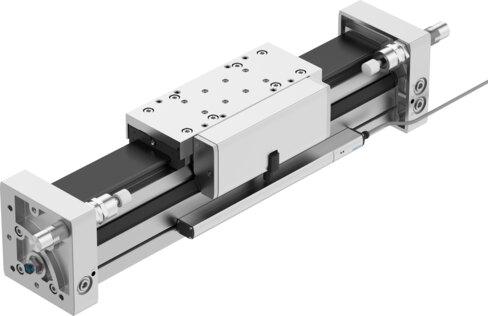

Reference imageConfirm configuration by manufacturer part number.
Festo
544429
Linear actuator DGCI-63- -
The Festo 544429 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke ranging from 100 mm to 2000 mm, and a recirculating ball bearing guide supporting any mounting position. Operating at pressures between 0.15 MPa and 0.8 MPa (1.5 bar to 8 bar), this unit incorporates pneumatic shock absorbers with hard and soft characteristic curves, a 35 mm stroke reduction in end positions, and position sensing via an attached linear potentiometer. It carries RCM compliance, CE and UKCA markings per EU and UK directives for EMC, RoHS, and explosion protection, along with ATEX and UKEX certifications for Zone 2 gas (II 3G) and Zone 22 dust (II 3D). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 544429
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 544429.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 100 mm...2000 mm
- Stroke, servopneumatic positioning
- 100 mm...2000 mm
- Soft Stop stroke
- 100 mm...2000 mm
- Stroke reduction in the end positions
- 35 mm
- Shortest positioning stroke
- 3% of max. stroke | But maximum 20 mm
- Piston diameter
- 63 mm
- Cushioning
- Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Position sensing
- With linear potentiometer attached
- Variants
- Additional slide, standard, on left | Additional slide, standard on right
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Mode of operation
- Double-acting
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gc (GB)
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
- ATEX category gas
- II 3G
- ATEX category for dust
- II 3D
- Type of ignition protection for gas
- Ex ec IIC T4 Gc X
- Type of (ignition) protection for dust
- Ex tc IIIC T120°C Dc X
