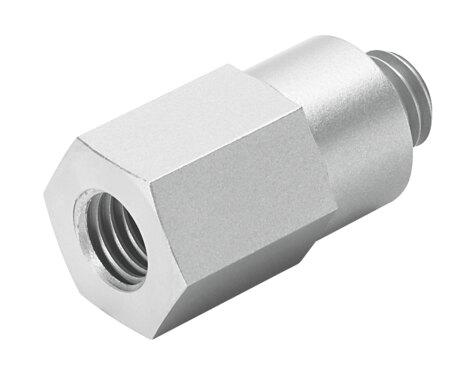

Reference imageConfirm configuration by manufacturer part number.
Festo
545997
Vacuum security valve ISV-M6
The Festo 545997 industrial component features an M6 size, screw-in mounting type, and M6 pneumatic connections on both ports, with an overall product weight of 14 g. Constructed with a wrought aluminum alloy housing, high-alloy steel spring, sintered bronze compressed air filter, and POM float, this unit operates within an ambient temperature range of -10 °C to 60 °C and a moderate corrosion resistance class of CRC 2. It requires a suction rate of 2 l/min at -0.5 bar, functions within an operating pressure of -95 kPa to 0 kPa (-0.95 bar to 0 bar), supports ejector pulse suitability up to 0.8 MPa (8 bar), and utilizes compressed air as an operating medium according to ISO 8573-1:2010 [7:-:-] with VDMA24364-B1/B2-L LABS conformity in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 545997
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 545997.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M6
- Ejector pulse suitability
- 0.8 MPa | 8 bar
- Mounting position
- Any
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar
- Required suction rate at -0.5 bar
- 2 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 14 g
- Type of mounting
- Screw-in
- Pneumatic connection 1
- M6
- Pneumatic connection 2
- M6
- Material of spring
- High-alloy steel
- Compressed air lter material
- Sintered bronze
- Housing material
- Wrought aluminum alloy
- Float material
- POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 545997. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
