Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

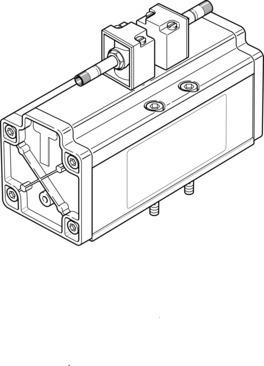

Reference imageConfirm configuration by manufacturer part number.
Festo
546036
Air solenoid valve MFH-5/3G-D4
The Festo 546036 is an electrically actuated 5/3 closed piston gate valve featuring a 76 mm width, an 18 mm nominal width, and an 82 mm width dimension conforming to ISO 5599-1. This pilot-controlled component delivers a standard nominal flow rate of 4800 l/min across an operating pressure range of 3 bar to 16 bar utilizing internal pilot air supply, a soft sealing principle, and a mechanical spring reset method. Designed with IP65 degree of protection, an integrated flow control exhaust air function, and a size 4 ISO 5599-1 sub-base or G3/4 pneumatic working port, it accommodates any mounting position and detenting manual override via accessory while operating voltage is supplied via a separately ordered solenoid coil. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546036
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546036.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3, closed
- Actuation type
- Electrical
- Width
- 76 mm
- Standard nominal ow rate
- 4800 l/min
- Pneumatic working port
- Sub-base, size 4 as per ISO 5599-1 | G3/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 3 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 18 mm
- Width dimension
- 82 mm
- Exhaust air function
- With ow control option
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory
- Type of control
- Pilot-controlled
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Switching time off
- 290 ms
- On switching time
- 85 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 2600 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- With through-hole
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546036. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
