Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
546039

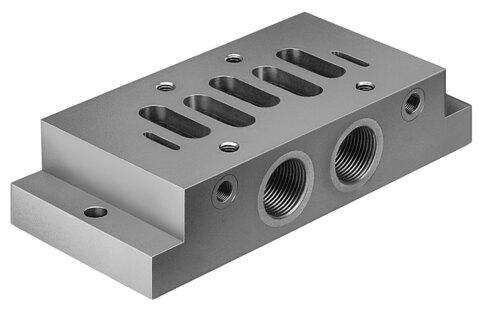

Individual subbase NAS-1-4A-ISO
The Festo 546039 is an industrial component featuring an anodized die-cast aluminum sub-base with a product weight of 1450 g and through-hole mounting. It conforms to ISO 5599-1 and VDMA 24345-A-4 designations, includes G1 pneumatic connections 1 through 5, and provides G1/8 pilot air ports 12 and 14 with CRC 2 moderate corrosion stress resistance and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546039
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546039.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Designation to VDMA
- VDMA 24345-A-4
- Conforms to standard
- ISO 5599-1
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1450 g
- Type of mounting
- With through-hole
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection 1
- G1
- Pneumatic connection 2
- G1
- Pneumatic connection 3
- G1
- Pneumatic connection 4
- G1
- Pneumatic connection 5
- G1
- Material of sub-base
- Die-cast aluminum | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546039. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
