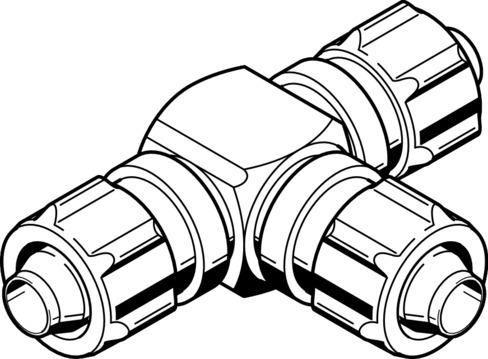

Reference imageConfirm configuration by manufacturer part number.
Festo
546067
Distributor FCK-3-PK-6-N
Engineered by Festo, the part number 546067 is an industrial component featuring a wrought aluminum alloy housing and a nominal width of 4.5 mm. Weighing 14 g, this unit operates across a pressure range of 0 bar to 10 bar throughout its entire temperature range, incorporates a Class 1 corrosion resistance rating, and meets VDMA24364-B1/B2-L LABS conformity. It is equipped with pneumatic connection 1 for a barbed fitting with a 6 mm inside diameter using a union nut, and pneumatic connection 2 for a barbed fitting with a 3 mm inside diameter using a nut, while supporting any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546067
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546067.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4.5 mm
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0 bar...10 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 14 g
- Pneumatic connection 1
- For barbed tting, inside diameter 6 mm, with union nut
- Pneumatic connection 2
- for barbed tting, inside diameter 3 mm, with nut
- Housing material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546067. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
