Festo
546069

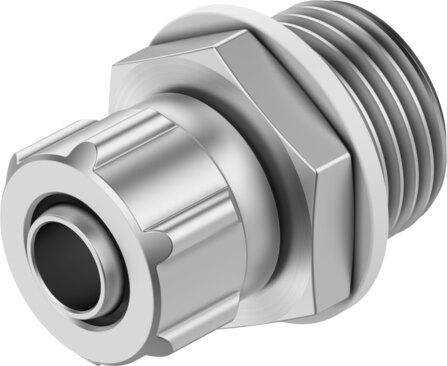

Quick connector CK-1/2-PK-9
This Festo industrial component, part number 546069, features a 9 mm nominal width and an anodized aluminum housing with a corrosion resistance class of 2 for moderate corrosion stress. Pneumatic connection 1 utilizes an external thread G1/2, while pneumatic connection 2 accommodates a barbed fitting with an inside diameter of 9 mm and a nut, incorporating a sealing ring on the screwed plug. The unit supports any mounting position, adheres to LABS conformity VDMA24364-B1/B2-L, and permits operation with oil lubrication which is required for further use. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546069
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546069.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 9 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- for barbed tting, inside diameter 9 mm, with nut
- Housing material
- Aluminum | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546069. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
