Reference imageConfirm configuration by manufacturer part number.
Festo
546094

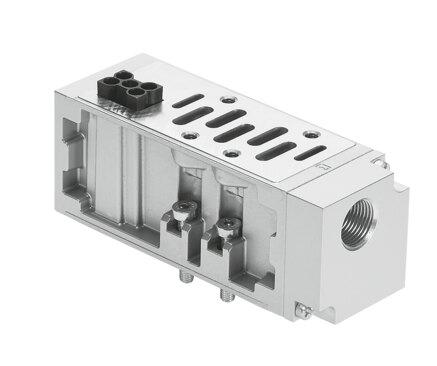

Vertical pressure supply plate VABF-S2-1-P1A3-N38
The Festo 546094 is an industrial component designed for pneumatic vertical stacking to provide an alternative pressure supply for port 1 based on the ISO 5599-2 norm. Constructed with a die-cast aluminum housing weighing 340 g, this unit operates at pressures from -0.9 bar to 10 bar with a normal nominal flow rate of 1300 l/min using compressed air according to ISO 8573-1:2010 [7:4:4]. It features IP65 and NEMA 4 degrees of protection, offers a corrosion resistance class of 0 with no corrosion stress, and can be mounted in any position on a manifold or individual sub-base. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546094
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546094.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 43 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pneumatic vertical stacking
- Alternative pressure supply for 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- CE marking (see declaration of conformity)
- as per EU simple pressure vessel directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 340 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546094. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
