546096

Name: Festo 546096 Vertical pressure shut-off plate VABF-S2-1-L1D1-C
Brand: Festo

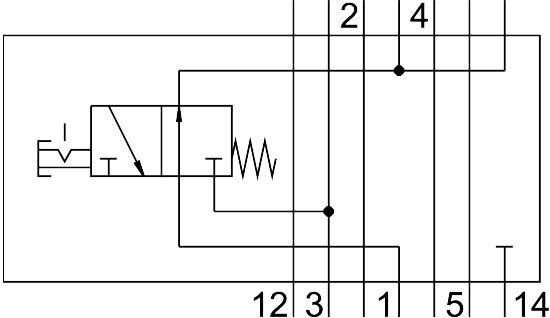

Vertical pressure shut-off plate VABF-S2-1-L1D1-C

The Festo 546096 is an industrial component featuring a width of 43 mm and a die-cast aluminum housing with a product weight of 600 g, built to ISO 5599-2 standards for pneumatic vertical stacking with a shut-off for 1. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and delivers a normal nominal flow rate of 1200 l/min using compressed air as per ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -5 °C to 50 °C. Rated IP65 and NEMA 4, this RoHS-compliant unit mounts on a manifold sub-base or individual sub-base in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 546096
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 546096.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 43 mm
Based on norm: ISO 5599-2
Mounting position: Any
Pneumatic vertical stacking: Shut-oﬀ for 1
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Normal nominal ow rate (normalized to DIN 1343): 1200 l/min
CE marking (see declaration of conformity): as per EU simple pressure vessel directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Ambient temperature: -5 °C...50 °C
Product weight: 600 g
Vertical stacking mounting type: On manifold sub-base | On individual sub-base
Note on materials: RoHS compliant
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 546096. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
