Festo
546101

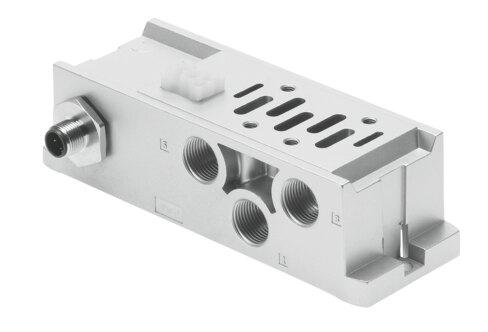

Sub-base VABS-S2-1S-G38-R3
The Festo part number 546101 is an industrial component featuring a width of 42 mm and an ISO 5599-2 standard basis with die-cast aluminum sub-base construction. It operates within a pressure range of -0.09 MPa to 1 MPa using compressed air per ISO 8573-1:2010 [7:4:4] with an external pilot air supply port and 24 V DC operating voltage. Weighing 386 g, the unit includes IP65 and NEMA 4 protection in the mounted state and mounts via a through-hole for ambient temperatures between -5 °C and 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546101
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546101.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pilot air supply port
- External
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- DC operating voltage range
- 24 V
- Surge resistance
- 0.8 kV
- Current rating at 40° C
- 2 A
- Contamination level
- 3
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4 | In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 386 g
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546101. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
