Festo
546102

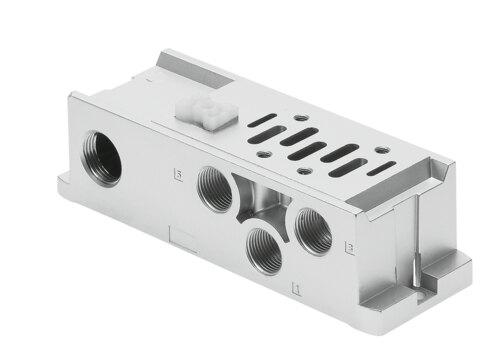

Sub-base VABS-S2-1S-G38-B-K1
The Festo 546102 is an industrial component measuring 42 mm in width, designed with through-hole mounting for any position and built to the ISO 5599-2 norm with a product weight of 364 g. Operating within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a temperature range of -5 °C to 50 °C, this unit functions with compressed air as per ISO 8573-1:2010 [7:4:4] and internal pilot air supply, allowing oil-lubricated operation. Electrical characteristics include an operating voltage of 110 V AC, 24 V DC operating voltage range, 4 kV surge resistance, and a 2 A current rating at 40° C, complemented by IP65 and NEMA 4 protection in the mounted state with CE marking as per the EU low voltage directive. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546102
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546102.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pilot air supply port
- Internal
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Operating voltage range AC
- 110 V
- DC operating voltage range
- 24 V
- Surge resistance
- 4 kV
- Current rating at 40° C
- 2 A
- Contamination level
- 3
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4 | In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 364 g
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
