Name: Festo 546188 Electrical interface CPV10-GE-DI02-8
Brand: Festo

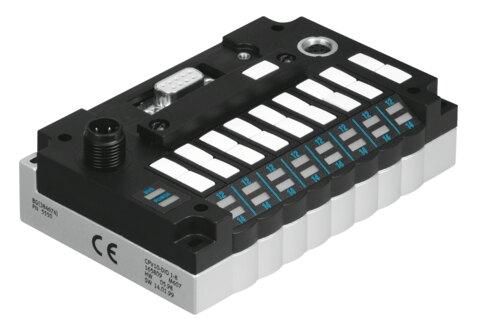

Electrical interface CPV10-GE-DI02-8

The Festo industrial component, part number 546188, features a 24 V DC nominal operating voltage range of 20.4 V to 26.4 V with cyclic communication and an automatic baud rate detection from 9.6 kBd to 12 MBaud via either an M12x1 5-pin B-coded interface or a 9-pin Sub-D socket. This unit supports up to 32 inputs, 48 maximum solenoid coils with string expansion, and device-specific diagnostics encompassing DPV0, output short circuits, undervoltages, and missing modules. Operating across a storage temperature range of -20 °C to 70 °C, it includes reverse polarity protection for all electrical connections and GSD file configuration support. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 546188
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 546188.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

CP string expansion: Yes | 32 inputs | 32 outputs
Fieldbus interface: Alternatively: | Socket and plug, M12x1, 5-pin, B-coded | Sub-D, 9-pin, plug socket
Device-specic diagnostics: Via device-specic diagnostics (DPV0) | Missing module on CP string extension | Short circuit/overload of outputs | Undervoltage of outputs | Sensor power undervoltage | Undervoltage of pneumatic valves
Communication types: Cyclic communication
Conguration support: GSD les and bitmaps
Max. no. of solenoid coils with string expansion: 48
Max. no. of solenoid coils: 16
Reverse polarity protection: for all electrical connections
Baud rate: 9.6 kBd ... 12 MBaud | Automatic detection
DC operating voltage range: 20.4 V...26.4 V
Max. no. of outputs: 16 valve coils and 32 outputs | 48 valve coils
Max. number of inputs: 32
Nominal operating voltage DC: 24 V
Power failure buﬀering: 10 ms
Residual ripple: 4 Vss
Current consumption at load nominal operating voltage: Depends on pneumatic valve type
Current consumption at nominal operating voltage: Electronics: <= 100 mA | Sensor supply: depends on sensor
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...70 °C
Degree of protection: IP65
Ambient temperature: -5 °C...50 °C
Certication: c UL us - recognized (OL)
