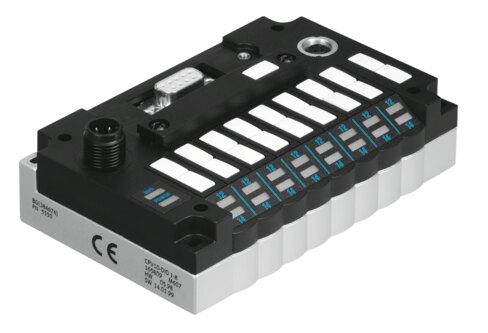

Reference imageConfirm configuration by manufacturer part number.
Festo
546190
Electrical interface CPV14-GE-DI02-8
The Festo 546190 industrial component operates on a nominal DC voltage of 24 V with a DC operating voltage range of 20.4 V to 26.4 V and automatic baud rate detection from 9.6 kBd to 12 MBaud via a fieldbus interface using either a 5-pin M12 socket and plug or a 9-pin Sub-D plug socket. It supports cyclic communication, GSD files and bitmaps for configuration, and provides device-specific diagnostics for DPV0, missing modules on CP string extensions, short circuits or overloads, and undervoltage conditions. This hardware features CP string expansion with 32 inputs and 32 outputs, a maximum of 48 solenoid coils with string expansion, reverse polarity protection for all electrical connections, and 10 ms power failure buffering. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546190
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546190.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- CP string expansion
- Yes | 32 inputs | 32 outputs
- Fieldbus interface
- Alternatively: | Socket and plug, M12x1, 5-pin, B-coded | Sub-D, 9-pin, plug socket
- Device-specic diagnostics
- Via device-specic diagnostics (DPV0) | Missing module on CP string extension | Short circuit/overload of outputs | Undervoltage of outputs | Sensor power undervoltage | Undervoltage of pneumatic valves
- Communication types
- Cyclic communication
- Conguration support
- GSD les and bitmaps
- Max. no. of solenoid coils with string expansion
- 48
- Max. no. of solenoid coils
- 16
- Reverse polarity protection
- for all electrical connections
- Baud rate
- 9.6 kBd ... 12 MBaud | Automatic detection
- DC operating voltage range
- 20.4 V...26.4 V
- Max. no. of outputs
- 16 valve coils and 32 outputs | 48 valve coils
- Max. number of inputs
- 32
- Nominal operating voltage DC
- 24 V
- Power failure buffering
- 10 ms
- Residual ripple
- 4 Vss
- Current consumption at load nominal operating voltage
- Depends on pneumatic valve type
- Current consumption at nominal operating voltage
- Electronics: <= 100 mA | Sensor supply: depends on sensor
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...50 °C
- Certication
- c UL us - recognized (OL)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546190. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
