546221

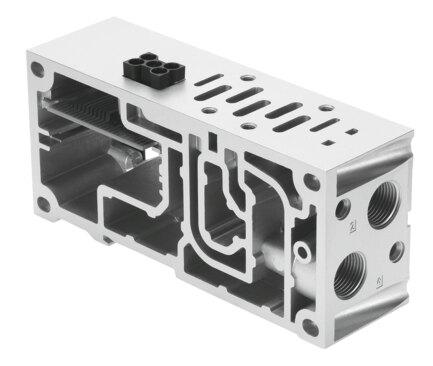

Name: Festo 546221 Manifold sub-base VABV-S2-1HS-N38-T2
Brand: Festo

Manifold sub-base VABV-S2-1HS-N38-T2

The Festo part number 546221 is an industrial component featuring a die-cast aluminum plate with a product weight of 330 g and 3/8 NPT pneumatic connections for both connection 2 and connection 4. This unit carries a CE marking as per the EU simple pressure vessel directive, features a corrosion resistance class (CRC) of 0 for no corrosion stress, and demonstrates VDMA24364-B1/B2-L LABS conformity with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 546221
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 546221.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

CE marking (see declaration of conformity): as per EU simple pressure vessel directive
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 330 g
Pneumatic connection 2: 3/8 NPT
Pneumatic connection 4: 3/8 NPT
Note on materials: RoHS compliant
Plate material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 546221. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
