Festo
546224

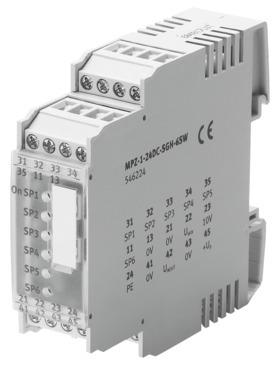

Setpoint module MPZ-1-24DC-SGH-6-SW
The Festo 546224 industrial component operates on a DC voltage range of 20 V to 30 V with a power consumption of 1.5 W at 24 VDC and features an adjustable output voltage from 0 V to 10 V alongside a maximum output current of 27 mA. It includes a yellow LED for active setpoint value display, a green LED for ready status indication, and maintains a degree of protection of IP20 across an ambient temperature range of 0 °C to 60 °C in any mounting position. Certified with C-Tick and carrying a CE marking as per the EU EMC directive, this unit exhibits a corrosion resistance class of CRC 2 and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546224
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546224.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Active setpoint value display
- LED yellow
- Ready status indication
- LED green
- DC operating voltage range
- 20 V...30 V
- Setpoint input external input resistance
- Typ. 100 kOhm
- Setpoint input input resistance
- 3 kOhm
- Adjustable output voltage
- 0 V...10 V
- Power consumption at 24 VDC
- 1.5 W
- Max. output current
- 27 mA
- Residual ripple
- 10 %
- External setpoint input voltage
- 0 V...10 V
- Supply voltage setpoint setting
- 10 V...10.6 V
- Supply current setpoint setting
- 6 mA...6.36 mA
- External setpoint input potentiometer
- 2.5 kOhm...10 kOhm
- Certication
- C-Tick
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP20
- Ambient temperature
- 0 °C...60 °C
- Mounting position
- Any
- Product weight
- 80 g
- Connection cross section
- 2.5 mm²
- Electrical connection
- Screw terminal
- Type of mounting
- With H-rail
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546224. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
