Festo
546413

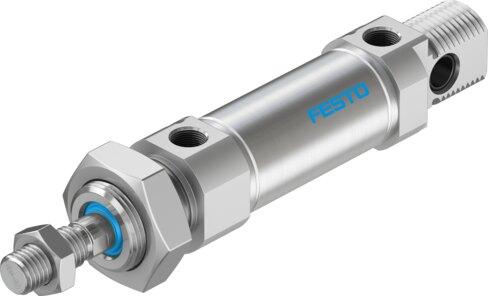

Round cylinder DSNU-1"-1/2"-PPV-A
The Festo 546413 is a double-acting industrial component built on the ISO 6432 norm featuring a 1" piston diameter, a 0.5 in stroke, and a 3/8-24 UNF-2A external piston rod thread at one end. Designed with adjustable pneumatic cushioning at both ends, a 0.67 in cushioning length, and a 0.221 ft-lbf impact energy tolerance in the end positions, this unit operates within a 1 bar to 10 bar pressure range and yields a theoretical retracting force of 55.6 lbf at 6 bar using compressed air per ISO 8573-1:2010 [7:4:4]. It accommodates any mounting position, allows position sensing via proximity switch, features a CRC 2 moderate corrosion resistance class, and functions within an ambient temperature span of -4 °F to 176 °F. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546413
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546413.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.5 in
- Piston diameter
- 1"
- Piston rod thread
- 3/8-24 UNF-2A
- Based on norm
- ISO 6432
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.221 ft-lbf
- Cushioning length
- 0.67 in
- Theoretical force at 6 bar, retracting
- 55.6 lbf
- Theoretical force at 6 bar, advancing
- 66.2 lbf
- Moving mass at 0 mm stroke
- 2.5 oz
- Additional moving mass per 10 mm stroke
- 0.212 oz
- Basic weight with 0 mm stroke
- 8.4 oz
- Additional weight per 10 mm stroke
- 0.388 oz
- Type of mounting
- With accessories
- Pneumatic connection
- 1/8 NPT
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR | TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546413. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
