Name: Festo 546416 Round cylinder DSNU-1"-2"-PPV-A
Brand: Festo

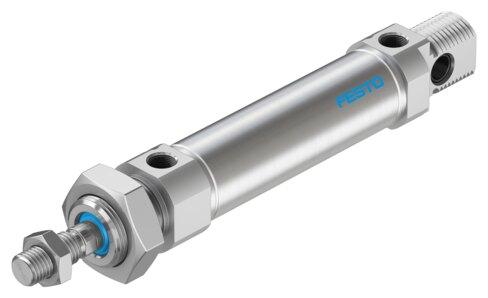

Round cylinder DSNU-1"-2"-PPV-A

The Festo part number 546416 is an ISO 6432 double-acting industrial component featuring a 1-inch piston diameter, a 2-inch stroke, and a 3/8-24 UNF-2A external piston rod thread at one end. This unit operates within a pressure range of 1 bar to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting force of 55.6 lbf at 6 bar and accommodating adjustable pneumatic cushioning at both ends. It includes position sensing via proximity switch, a corrosion resistance class of 2, and an ambient temperature range of -4 °F to 176 °F for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 546416
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 546416.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 2 in
Piston diameter: 1"
Piston rod thread: 3/8-24 UNF-2A
Based on norm: ISO 6432
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Piston rod end: External thread
Structural design: Piston | Piston rod
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -4 °F...176 °F
Impact energy in the end positions: 0.221 ft-lbf
Cushioning length: 0.67 in
Theoretical force at 6 bar, retracting: 55.6 lbf
Theoretical force at 6 bar, advancing: 66.2 lbf
Moving mass at 0 mm stroke: 2.5 oz
Additional moving mass per 10 mm stroke: 0.212 oz
Basic weight with 0 mm stroke: 8.4 oz
Additional weight per 10 mm stroke: 0.388 oz
Type of mounting: With accessories
Pneumatic connection: 1/8 NPT
Cover material: Wrought aluminum alloy
Seals material: NBR | TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 546416. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
