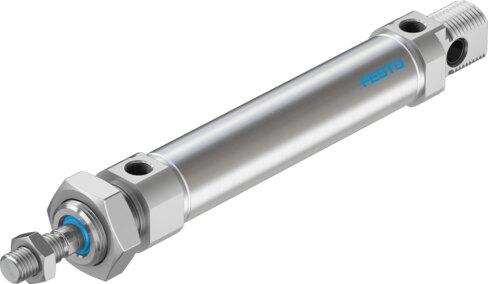

Name: Festo 546421 Round cylinder DSNU-1"-3"-PPV-A
Brand: Festo

Round cylinder DSNU-1"-3"-PPV-A

The Festo 546421 is a double-acting industrial component built to ISO 6432 standards featuring a 1-inch piston diameter, a 3-inch stroke, and a 3/8-24 UNF-2A external piston rod thread at one end. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 bar to 10 bar pressure range, this unit incorporates adjustable pneumatic cushioning at both ends with a 0.67-inch cushioning length and 0.221 ft-lbf end-position impact energy. It delivers a theoretical retracting force of 55.6 lbf at 6 bar, accommodates any mounting position with position sensing via proximity switch, and offers moderate corrosion resistance (CRC 2) across an ambient temperature range of -4 °F to 176 °F. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 546421
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 546421.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 3 in
Piston diameter: 1"
Piston rod thread: 3/8-24 UNF-2A
Based on norm: ISO 6432
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Piston rod end: External thread
Structural design: Piston | Piston rod
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -4 °F...176 °F
Impact energy in the end positions: 0.221 ft-lbf
Cushioning length: 0.67 in
Theoretical force at 6 bar, retracting: 55.6 lbf
Theoretical force at 6 bar, advancing: 66.2 lbf
Moving mass at 0 mm stroke: 2.5 oz
Additional moving mass per 10 mm stroke: 0.212 oz
Basic weight with 0 mm stroke: 8.4 oz
Additional weight per 10 mm stroke: 0.388 oz
Type of mounting: With accessories
Pneumatic connection: 1/8 NPT
Cover material: Wrought aluminum alloy
Seals material: NBR | TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 546421. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
