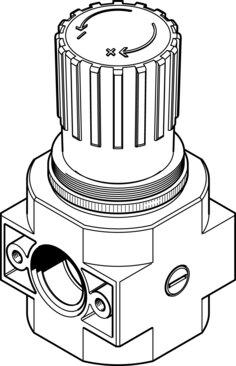

Reference imageConfirm configuration by manufacturer part number.
Festo
546424
Basic valve LR-D-MIDI
The Festo 546424 is a Midi size D-series industrial component featuring a directly controlled diaphragm regulator with a rotary knob with detent actuator lock and primary pressure compensation. Operating at up to 16 bar with a 0.5 bar to 12 bar pressure regulation range and a normal nominal flow rate of 503 cfm, this device accommodates compressed air and inert gases within a temperature range of 14 °F to 140 °F. It offers front panel mounting, in-line installation, or accessory mounting options with a moderate corrosion stress rating and a product weight of 23.1 oz. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546424
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546424.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Any
- Structural design
- Directly controlled diaphragm regulator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting
- Pressure gauge
- Set up for G1/4
- Operating pressure
- 1.6 MPa | 16 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. pressure hysteresis
- 0.02 MPa | 0.2 bar | 2.9 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 503 cfm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Temperature of medium
- 14 °F...140 °F
- Ambient temperature
- 14 °F...140 °F
- Product weight
- 23.1 oz
- Type of mounting
- Front panel mounting | In-line installation | With accessories
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Die-cast zinc
