Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

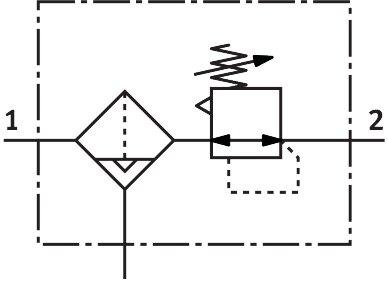

Reference imageConfirm configuration by manufacturer part number.
Festo
546462
Basic valve LFR-D-5M-MIDI-A
The Festo 546462 is a Midi size Series D filter regulator without a pressure gauge, featuring a structural design with a 5 µm filtration grade and a fully automatic condensate drain holding a maximum condensate volume of 1.45 oz (US). Operating within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar) and a regulation range of 0.5 bar to 12 bar, this component is set up for a G1/4 pressure gauge and achieves a normal nominal flow rate of 377 cfm with a max pressure hysteresis of 3 psi. Built with a metal bowl guard, rotary knob actuator lock with detent, and a vertical ±5° mounting position, it operates on compressed air per ISO 8573-1:2010 [7:9:-] or inert gases with possible oil lubrication, providing an output air quality class per ISO 8573-1:2010 [6:8:4] while withstanding moderate corrosion stress (CRC 2) and meeting VDMA24364-B1/B2-L LABS conformity across storage temperatures of 14 °F to 140 °F. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546462
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546462.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 5 µm
- Condensate drain
- Fully automatic
- Structural design
- Filter regulator without pressure gauge
- Max. condensate volume
- 1.45 oz (US)
- Bowl guard
- Metal bowl guard
- Pressure gauge
- Set up for G1/4
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. pressure hysteresis
- 3 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 377 cfm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 14 °F...140 °F
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:8:4] | Inert gases
- Temperature of medium
- 41 °F...140 °F
- Ambient temperature
- 41 °F...140 °F
- Product weight
- 31.5 oz
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
- Material of bowl
- PC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546462. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
