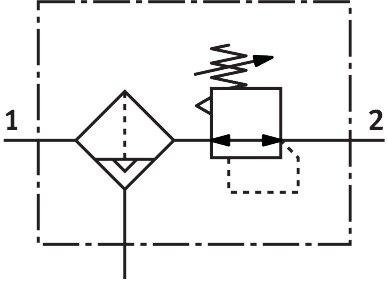

Reference imageConfirm configuration by manufacturer part number.
Festo
546464
Basic valve LFR-D-7-MIDI-A
The Festo part number 546464 is a D-series Midi structural design filter regulator with a pressure gauge, featuring a rotary knob with detent actuator lock and a fully automatic condensate drain. It operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar), provides a pressure regulation range of 0.5 bar to 7 bar, and delivers a normal nominal flow rate of 330 cfm using compressed air per ISO 8573-1:2010 [7:9:-] or inert gases. Built with a metal bowl guard and a 40 µm filtration grade, this component maintains a maximum pressure hysteresis of 3 psi and achieves an output air quality class of ISO 8573-1:2010 [7:8:4] while supporting vertical ±5° mounting. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546464
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546464.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Structural design
- Filter regulator with pressure gauge
- Max. condensate volume
- 1.45 oz (US)
- Bowl guard
- Metal bowl guard
- Pressure gauge
- Set up for G1/4
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 3 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 330 cfm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 14 °F...140 °F
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:4] | Inert gases
- Temperature of medium
- 41 °F...140 °F
- Ambient temperature
- 41 °F...140 °F
- Product weight
- 31.5 oz
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
- Material of bowl
- PC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546464. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
