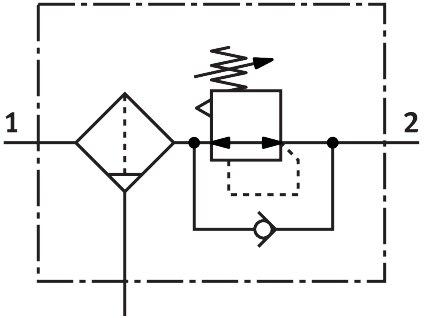

Reference imageConfirm configuration by manufacturer part number.
Festo
546470
Basic valve LFR-D-7-MAXI
The Festo 546470 is a Maxi size Series D filter regulator featuring a structural design without a pressure gauge, a rotary knob with detent actuator lock, and a 40 µm grade of filtration. Operating within a pressure range of 1 bar to 16 bar and a regulation range of 0.5 bar to 7 bar, this component handles a normal nominal flow rate of 1493 cfm for compressed air as per ISO 8573-1:2010 [-:9:-] or inert gases. It includes a manual rotating condensate drain with a maximum volume of 2.7 US oz, a metal bowl guard, and is set up for a G1/4 pressure gauge while maintaining a moderate corrosion stress rating of CRC 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546470
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546470.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Manual, rotating
- Structural design
- Filter regulator without pressure gauge
- Max. condensate volume
- 2.7 oz (US)
- Bowl guard
- Metal bowl guard
- Pressure gauge
- Set up for G1/4
- Operating pressure
- 0.1 MPa...1.6 MPa | 1 bar...16 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 6 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1493 cfm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:9:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 14 °F...140 °F
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:4] | Inert gases
- Temperature of medium
- 14 °F...140 °F
- Ambient temperature
- 14 °F...140 °F
- Product weight
- 51.5 oz
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
- Material of bowl
- PC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546470. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
