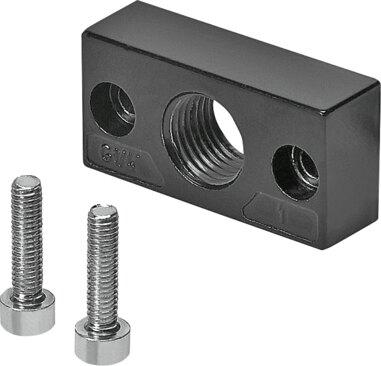

Reference imageConfirm configuration by manufacturer part number.
Festo
546509
Sub-base PBL-1-D-MAXI-L
The Festo 546509 is a Maxi size industrial component from the D series, featuring a G1 pneumatic connection and a die-cast zinc sub-base. It incorporates NBR sealing rings, steel screws, and operates within a medium temperature range of -10 °C to 60 °C with a total product weight of 180 g. This RoHS compliant part adheres to VDMA24364-B1/B2-L LABS conformity and provides a corrosion resistance class of CRC 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546509
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546509.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Series
- D
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Product weight
- 180 g
- Pneumatic connection 1
- G1
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast zinc
- Sealing ring material
- NBR
- Material of screws
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546509. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
