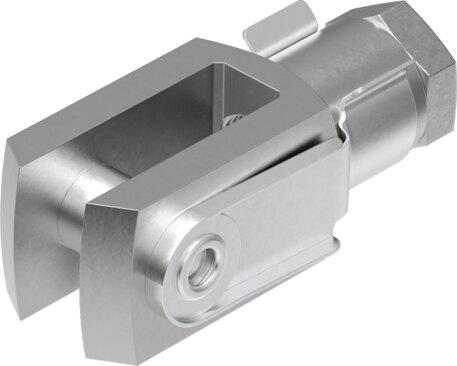

Reference imageConfirm configuration by manufacturer part number.
Festo
546545
Rod clevis SG-UNF1/2"-20-B
The Festo 546545 industrial component features a UNF1/2-20 size based on DIN 71752 and ISO 8140 norms, with a product weight of 165 g or 5.81 oz. Constructed with galvanized steel for the bolt, clevis, and nut, this RoHS-compliant assembly offers a corrosion resistance class of 1 for low corrosion stress and operates within an ambient temperature range of -40 °C to 150 °C while meeting VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546545
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546545.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- UNF1/2-20
- Based on norm
- DIN 71752 | ISO 8140
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 165 g | 5.81 oz
- Note on materials
- RoHS compliant
- Bolt material
- Steel | Galvanized
- Clevis material
- Steel | Galvanized
- Nut material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546545. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
