Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

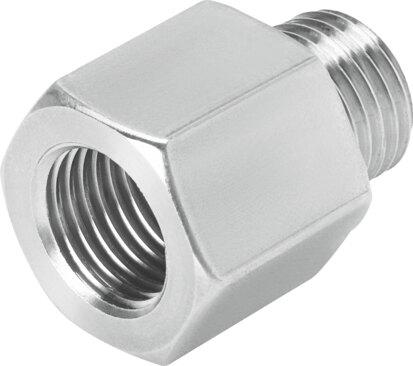

Reference imageConfirm configuration by manufacturer part number.
Festo
546547
Adapter AD-1NPT-G1-I
This Festo industrial component, part number 546547, features a nominal width of 24.2 mm, a galvanized steel housing, and PVC seals with RoHS compliance. It operates at pressures from -0.95 bar to 10 bar across ambient temperatures of -10 °C to 60 °C, offering a corrosion resistance class of CRC 1 and VDMA24364-B1/B2-L LABS conformity. The unit weighs 218.86 g and incorporates an external thread 1 NPT pneumatic connection 1 with a maximum tightening torque of 35 Nm, alongside an internal thread G1 pneumatic connection 2 rated for a maximum tightening torque of 90 Nm. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546547
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546547.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 24.2 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque, pneumatic connection 1
- 35 Nm
- Max. tightening torque, pneumatic connection 2
- 90 Nm
- Product weight
- 218.86 g
- Pneumatic connection 1
- External thread 1 NPT
- Pneumatic connection 2
- Internal thread G1
- Note on materials
- RoHS compliant
- Seals material
- PVC
- Housing material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546547. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
