Festo
546550

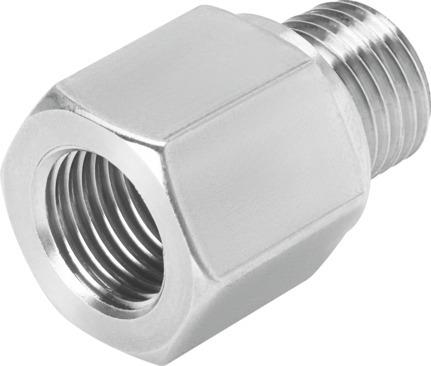

Adapter AD-G3/4-3/4NPT-I
The Festo 546550 is an industrial component featuring a nominal width of 18.3 mm, a galvanized steel housing, and PVC seals with RoHS compliance. It operates at pressures from -0.95 bar to 10 bar across an ambient temperature range of -10 °C to 60 °C, incorporating an external G3/4 pneumatic connection 1 and an internal 3/4 NPT pneumatic connection 2. This part has a corrosion resistance class of 1 with VDMA24364-B1/B2-L LABS conformity, a product weight of 195.64 g, and specified tightening torques of 60 Nm for connection 1, 32 Nm for connection 2, and a nominal 45 Nm with a ±20% tolerance. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546550
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546550.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 18.3 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque, pneumatic connection 1
- 60 Nm
- Max. tightening torque, pneumatic connection 2
- 32 Nm
- Nominal tightening torque
- 45 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 195.64 g
- Pneumatic connection 1
- External thread G3/4
- Pneumatic connection 2
- Internal thread 3/4 NPT
- Note on materials
- RoHS compliant
- Seals material
- PVC
- Housing material
- Steel, galvanized
