Festo
546551

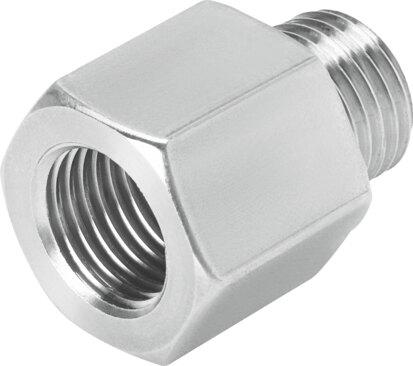

Adapter AD-3/4NPT-G3/4-I
The Festo 546551 industrial component features a nominal width of 19.05 mm, an operating pressure of -0.95 bar to 10 bar across its entire temperature range, and a product weight of 98.13 g. Built with a galvanized steel housing, PVC seals, and RoHS-compliant materials, it includes an external thread 3/4 NPT pneumatic connection 1 with a maximum tightening torque of 32 Nm and an internal thread G3/4 pneumatic connection 2 with a maximum tightening torque of 60 Nm. This unit rates for a corrosion resistance class of 1, VDMA24364-B1/B2-L LABS conformity, and an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546551
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546551.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 19.05 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque, pneumatic connection 1
- 32 Nm
- Max. tightening torque, pneumatic connection 2
- 60 Nm
- Product weight
- 98.13 g
- Pneumatic connection 1
- external thread 3/4 NPT
- Pneumatic connection 2
- Internal thread G3/4
- Note on materials
- RoHS compliant
- Seals material
- PVC
- Housing material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546551. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
