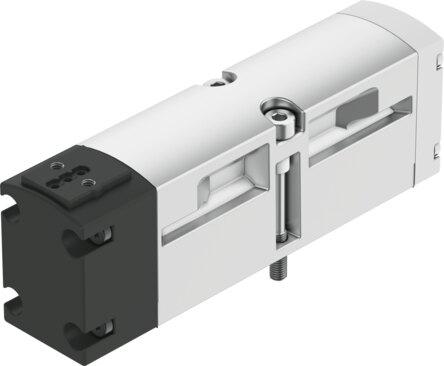

Reference imageConfirm configuration by manufacturer part number.
Festo
546739
Basic valve VSVA-B-M52-A-A1-P1
The Festo 546739 is an electrically actuated 5/2-way monostable industrial component featuring a 26 mm valve size, a piston gate valve structural design, and a soft sealing principle. It delivers a normal nominal flow rate of 1100 l/min, operates within a pressure range of 2 bar to 10 bar, and includes an adjustable exhaust air function, internal pilot air supply, and positive overlap lap. Certified as c UL us recognized (OL) with an IP65 and NEMA 4 degree of protection, the unit conforms to ISO 15407-1 and VDMA 24563 standards. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546739
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546739.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1 | Connecting plate size 01 according to VDMA 24563 | G1/4
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1 | VDMA 24563
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1400 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1100 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 1100 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546739. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
