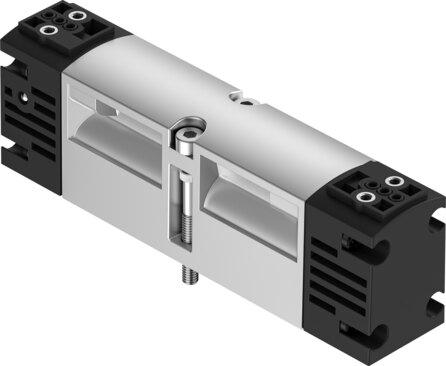

Reference imageConfirm configuration by manufacturer part number.
Festo
546744
Basic valve VSVA-B-P53U-A2-P1
The Festo 546744 is an electrical 5/3-way pressurized piston gate valve featuring an 18 mm valve size, a 5 mm nominal width, and a normal nominal flow rate of 450 l/min normalized to DIN 1343. This piloted component operates between 0.3 MPa and 1 MPa (3 bar to 10 bar) with an internal pilot air supply, incorporating a mechanical spring reset, adjustable exhaust air function, positive overlap lap, and an LED signal status display. It offers IP65 and NEMA 4 protection, utilizes a soft sealing principle, features sub-base ISO 15407-1, VDMA 24563 connecting plate size 02, and G1/8 pneumatic working ports, and carries c UL us - recognized (OL) certification while conforming to ISO 15407-1 and VDMA 24563 standards for any mounting position with non-reversible flow direction. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546744
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546744.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 450 l/min
- Pneumatic working port
- Sub-base, size 18 mm as per ISO 15407-1 | Connecting plate size 02 according to VDMA 24563 | G1/8
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1 | VDMA 24563
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 650 l/min
- Flow rate of pneumatic valve on individual sub-base
- 500 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 450 l/min
- Duty cycle
- 100%
- Permissible voltage uctuations
- -15% / +10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546744. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
