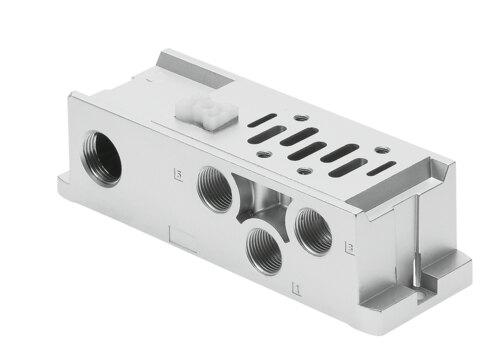

Name: Festo 546763 Sub-base VABS-S2-1S-N38-B-C1
Brand: Festo

Sub-base VABS-S2-1S-N38-B-C1

The Festo part number 546763 is an industrial component featuring a 42 mm width and ISO 5599-2 compliance, engineered for mounting in any position via through-hole. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) utilizing internal pilot air supply, and supports an AC operating voltage of 110 V alongside a 24 V DC operating voltage range. Weighing 371 g with an IP65 and NEMA 4 degree of protection when mounted, this unit functions with compressed air under ISO 8573-1:2010 [7:4:4] standards and accommodates oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 546763
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 546763.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 42 mm
Based on norm: ISO 5599-2
Mounting position: Any
Pilot air supply port: Internal
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Operating voltage range AC: 110 V
DC operating voltage range: 24 V
Surge resistance: 4 kV
Current rating at 40° C: 2 A
Contamination level: 3
CE marking (see declaration of conformity): As per EU low voltage directive
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4 | In mounted state
Ambient temperature: -5 °C...50 °C
Product weight: 371 g
Connection cross section: 0.08 mm²...0.75 mm²
Type of mounting: With through-hole
Note on materials: RoHS compliant
Material of sub-base: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 546763. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
