546777

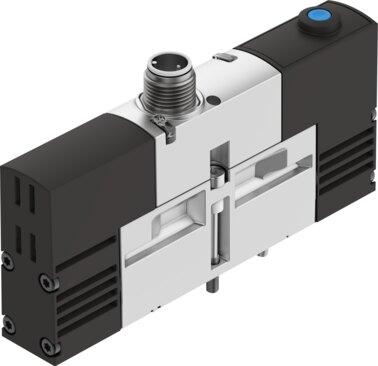

Name: Festo 546777 Air solenoid valve VSVA-B-M52-AZH-A2-1R5L
Brand: Festo

Air solenoid valve VSVA-B-M52-AZH-A2-1R5L

The Festo 546777 is an 18 mm wide electrical 5/2-way monostable piston gate valve featuring a piloted type of control, a soft sealing principle, and an adjustable exhaust air function with a normal nominal flow rate of 550 l/min. Operating on 24V DC within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this IP65-rated component utilizes a pneumatic spring reset and offers sub-base pneumatic working ports of size 18 mm as per ISO 15407-1 and connecting plate size 02 according to VDMA 24563. Certified with C-Tick and c UL us - recognized (OL) ratings alongside CE and UKCA markings per EMC and RoHS instructions, it includes a non-detenting manual override and can be mounted in any position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 546777
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 546777.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Width: 18 mm
Normal nominal ow rate (normalized to DIN 1343): 550 l/min
Pneumatic working port: Sub-base, size 18 mm as per ISO 15407-1 | Connecting plate size 02 according to VDMA 24563
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: C-Tick | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65
Nominal width: 5 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 15407-1 | VDMA 24563
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Reversible
Lap: Positive overlap
Reverse polarity protection: for all electrical connections
Additional functions: Holding current reduction | Safety shut-oﬀ
Signal status display: LED
Pilot pressure MPa: 0.3 MPa...0.8 MPa

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 546777. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
