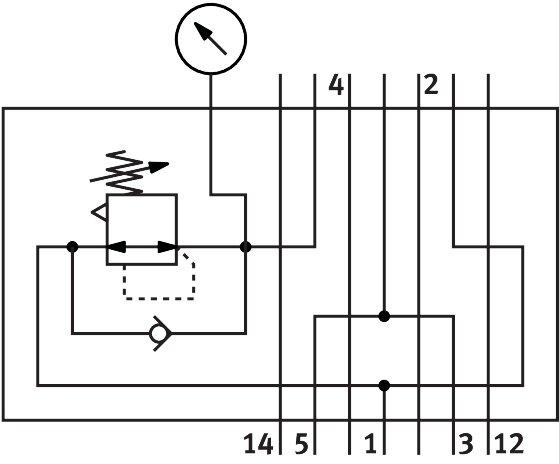

Reference imageConfirm configuration by manufacturer part number.
Festo
546791
Regulator plate VABF-S3-1-R7C2-C-6
The Festo 546791 is an industrial pneumatic vertical stacking pressure regulator for 4 reversible components based on the ISO 15407-1 norm, featuring a width of 26 mm and a weight of 305 g. It provides a constant output pressure with secondary exhausting across a pressure regulation range of 0.05 MPa to 0.6 MPa (0.5 bar to 6 bar, 7.25 psi to 87 psi) for an inlet pressure range of 0.5 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:4:4]. This IP65 and NEMA 4 rated component operates in ambient temperatures from -5 °C to 50 °C and mounts onto a manifold sub-base or individual sub-base in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546791
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546791.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 26 mm
- Based on norm
- ISO 15407-1
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 4 reversible
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range MPa
- 0.05 MPa...0.6 MPa
- Pressure regulation range
- 0.5 bar...6 bar
- Pressure regulation range psi
- 7.25 psi...87 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 305 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Note on materials
- RoHS compliant
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 546791. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
