Festo
546834

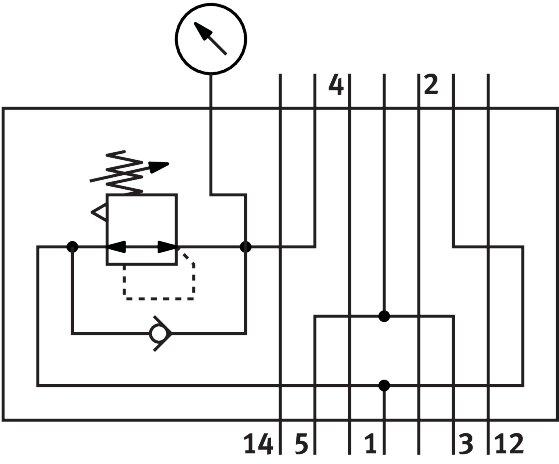

Regulator plate VABF-S2-1-R7C2-C-10
The Festo part number 546834 is a 42 mm industrial component designed for pneumatic vertical stacking as a pressure regulator for 4 reversible functions based on the ISO 5599-2 norm. It delivers a constant output pressure with secondary exhausting across a regulation and inlet pressure range of 0.05 MPa to 1 MPa (0.5 bar to 10 bar, or 7.25 psi to 145 psi) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. Featuring an IP65 and NEMA 4 degree of protection, a product weight of 640 g, and mounting capability on a manifold or individual sub-base, this unit operates within ambient temperatures from -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546834
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546834.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 4 reversible
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range MPa
- 0.05 MPa...1 MPa
- Pressure regulation range
- 0.5 bar...10 bar
- Pressure regulation range psi
- 7.25 psi...145 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- Inlet pressure 1 MPa
- 0.05 MPa...1 MPa
- Inlet pressure 1 psi
- 7.25 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 640 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
