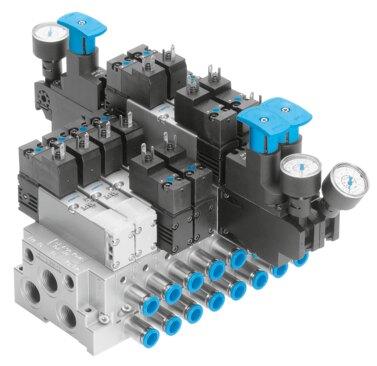

Reference imageConfirm configuration by manufacturer part number.
Festo
546835
Valve manifold assembly VTIA
The Festo 546835 is a type 16 industrial component featuring a modular valve manifold design that supports up to 16 valve positions and 3 pressure zones with mixed pneumatic valve sizes. It utilizes individual electrical connection actuation and operates within a medium and ambient temperature range of -5 °C to 50 °C, utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4] for both operating and pilot media. Constructed with HNBR and NBR seals, this unit provides IP65 and NEMA 4 protection degrees, operating pressures from -0.9 bar to 16 bar, and pilot pressures from 3 bar to 10 bar. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 546835
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 546835.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- Individual connection
- Valve terminal type
- 16
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 90%
- Degree of protection
- IP65 | NEMA 4
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Seals material
- HNBR | NBR
- Valve manifold design
- Modular, pneumatic valve sizes can be mixed
- Max. no. of valve positions
- 16
- Max. no. of pressure zones
- 3
- Actuation type
- Electrical
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 5/2-way, bistable | 5/2-way, dominant, bistable | 5/2-way, monostable | 5/3-way, pressurized | 5/3 exhausted | 5/3-way, closed
- Structural design
- Piston gate valve
- Valve size
- 18 mm
