Name: Festo 546924 Output module CP-A08-M12-EL-Z
Brand: Festo

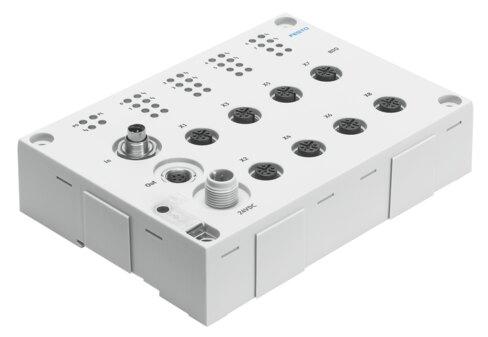

Output module CP-A08-M12-EL-Z

The Festo 546924 is an industrial component featuring an 8-output capacity, 24 V DC nominal operating voltage, and an operating range of 18 V to 30 V DC with a 4 Vss load voltage residual ripple supplied via a 24 V DC load voltage connection. Constructed with PA-reinforced housing and cover materials, it provides IP65 and IP67 degrees of protection, a corrosion resistance class of CRC 1, and operates within an ambient temperature range of -5 °C to 50 °C. It is equipped with 3 module diagnostics, 8 channel diagnostics, and 8 channel status LED indicators, supports mounting via through-hole or DIN rail, and complies with EU and UK EMC and RoHS directives alongside c UL us, RCM, and KC-EMV certifications. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 546924
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 546924.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Type of mounting: Alternatively: | With through-hole | With DIN rail
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Certication: RCM compliance mark | c UL us - Listed (OL)
Note on materials: RoHS compliant
Housing material: PA-reinforced
Cover material: PA-reinforced
LED indicators: 3 module diagnostics | 8 channel diagnostics | 8 channel status
Max. no. of outputs: 8
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
DC load voltage operating voltage range: 24 V
Information concerning load voltage: Via load voltage connection (24 V DC)
Load voltage residual ripple: 4 Vss
Characteristic curve outputs: IEC1131-T2
Switching logic at outputs: PNP (positive switching)
Max. residual current per module: 4 A
Electrical isolation between channels: No
Fuse protection (short circuit): Internal electronic fuse per group

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 546924. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
